For general information about how to configure a carrier in Carrier Connect, refer to our User Guide (German version).

To create a new Hellmann account in Carrier Connect, open Hellmann in Master data > Carrier configurations. In the tab Accounts click on New.

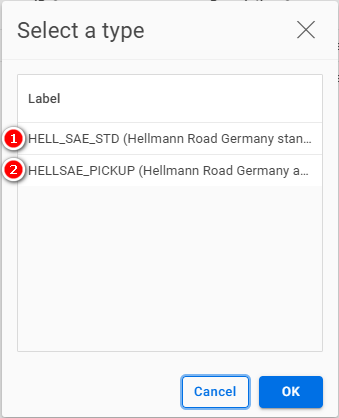

Select account type

(1) HELL_SAE_STD: This is the standard account type for outbound shipments.
(2) HELLSAE_PICKUP: Only use it if you will use the value-added service Pickup Booking (HELL_PICKUP).

If you want to create a new account, choose No:

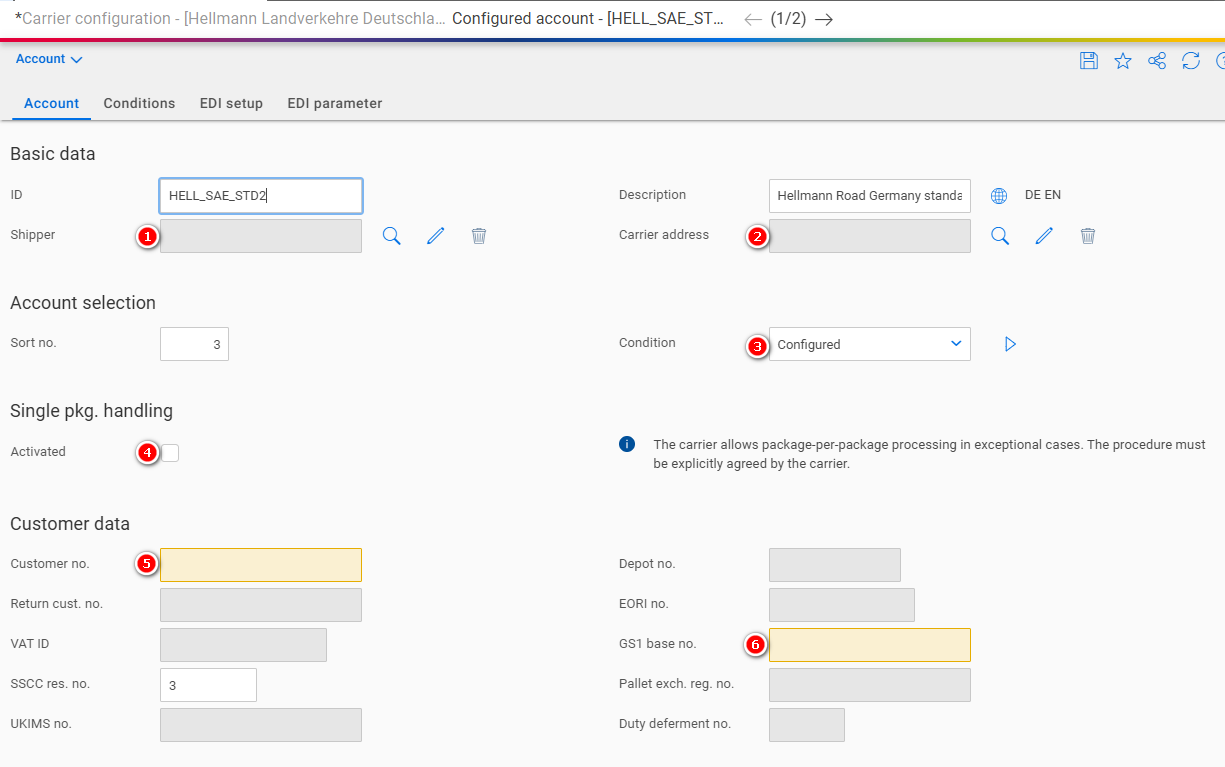

Hellmann (Germany) account

Number	Field	Comment
1	Shipper	The address of the shipper
2	Carrier address	The address of the carrier (depot)
3	Condition	See our user guide
4	Single pkg. handling	See Single Package Handling
5	Customer no.	Assigned by the carrier
6	GS1 base no.	Your company's GS1 base number
7	Package no. range	See Package number range
8	EDI transmission	Set to Send and log

Single Package Handling

The package number and the total number of packages are usually printed on the package label, e.g. 1 OF 2 for the first package, 2 OF 2 for the second package. Exception is the UPS service "Standard Package". With this service, 1 OF 1 is always printed on each package label, regardless of how many packages there are in total.
If single package handling is activated, 1 OF _, 2 OF _, etc. will be printed on the label for all services except "UPS Standard Package".

Package number range

📘
For general information about how to configure number ranges refer to Entering new number ranges and receiving notifications (German version) in our Carrier Connect user guide.

Click on the + to create a new number range:

Number	Field	Comment
1	Abbreviation	Choose a descriptive abbreviation. E.g. HELLMANN_PCK
2	Name	Choose a descriptive name. E.g. Hellmann (Germany) package number range
3	Start value	Assigned by the carrier
4	Max. value	Assigned by the carrier
5	Auto. re-start	Activated
6	Leading zeros	Activated
7	Char. length	7

EDI setup

In this section the EDI upload parameters are configured.

EDI number range

📘
For general information about how to configure number ranges refer to Entering new number ranges and receiving notifications (German version) in our Carrier Connect user guide.

Click on the + to create a new number range:

Number	Field	Comment
1	Abbreviation	Choose a descriptive abbreviation. E.g. HELLMANN_EDI
2	Name	Choose a descriptive name. E.g. Hellmann EDI number range
3	Start value	1
4	Max. value	999
5	Auto. re-start	Activated
6	Leading zeros	Activated
7	Char. length	3
