For general information about how to configure a carrier in Carrier Connect, refer to our User Guide (German version).

To create a new Noerpel account in Carrier Connect, open Noerpel in Master data > Carrier configurations. In the tab Accounts click on New.

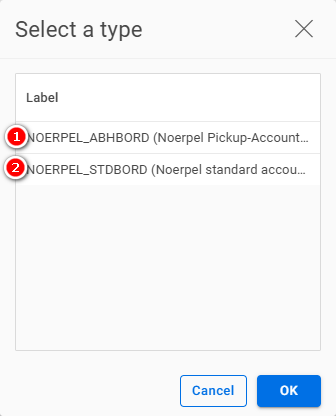

Select account type

(1) NOERPEL_ABHBORD only if you will use the value-added service Pickup Booking (PICKUP_BOOKING).
(2) NOERPEL_STDBORD in all other cases. It's the standard account type for outbound shipments.

If you want to create a new account, choose No:

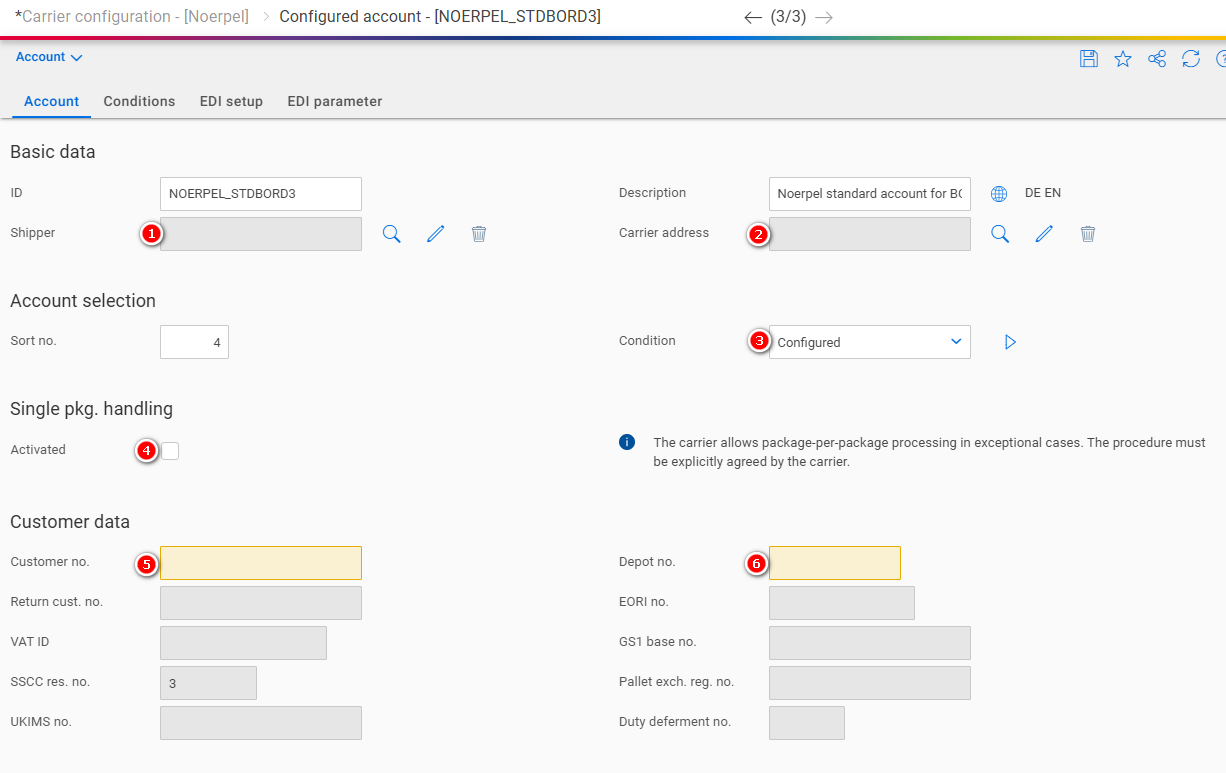

Noerpel (Germany) account

Number	Field	Comment
1	Shipper	The address of the shipper
2	Carrier address	The address of the carrier (depot)
3	Condition	See our user guide
4	Single pkg. handling	See Single Package Handling
5	Customer no.	Assigned by the carrier
6	Depot no.	Assigned by the carrier

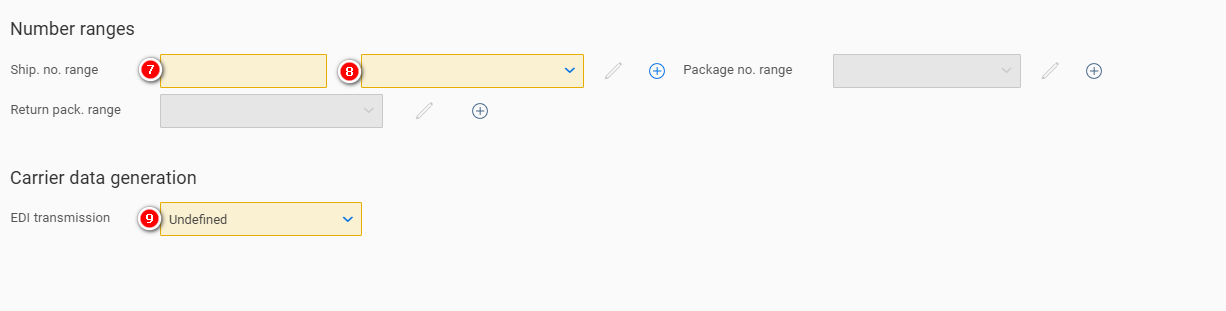

7	Ship. no. range	Assigned by the carrier. Usually 6 digits. This is used as the fixed part of the tracking number.
8	Package no. range	See Package number range
9	EDI transmission	Set to Send and log

Single Package Handling

The package number and the total number of packages are usually printed on the package label, e.g. 1 OF 2 for the first package, 2 OF 2 for the second package. Exception is the UPS service "Standard Package". With this service, 1 OF 1 is always printed on each package label, regardless of how many packages there are in total.
If single package handling is activated, 1 OF _, 2 OF _, etc. will be printed on the label for all services except "UPS Standard Package".

Package number range

📘
For general information about how to configure number ranges refer to Entering new number ranges and receiving notifications (German version) in our Carrier Connect user guide.

Click on the + to create a new number range:

Number	Field	Comment
1	Abbreviation	Choose a descriptive abbreviation. E.g. NOERPEL_PCK
2	Name	Choose a descriptive name. E.g. Noerpel (Germany) package number range
3	Start value	Assigned by the carrier
4	Max. value	Assigned by the carrier
5	Auto. re-start	Activated
6	Leading zeros	Activated
7	Char. length	7

EDI setup

In this section the EDI upload parameters are configured.

EDI number range

📘
For general information about how to configure number ranges refer to Entering new number ranges and receiving notifications (German version) in our Carrier Connect user guide.

Click on the + to create a new number range:

Number	Field	Comment
1	Abbreviation	Choose a descriptive abbreviation. E.g. NOERPEL_EDI
2	Name	Choose a descriptive name. E.g. Noerpel EDI number range
3	Start value	1
4	Max. value	999
5	Auto. re-start	Activated
6	Leading zeros	Activated
7	Char. length	3
